Average

✅ Calculate the mean value of a set of numbers.

This Average widget shows the average number (mean) of a field/column. It respects filters/searches and updates itself accordingly.

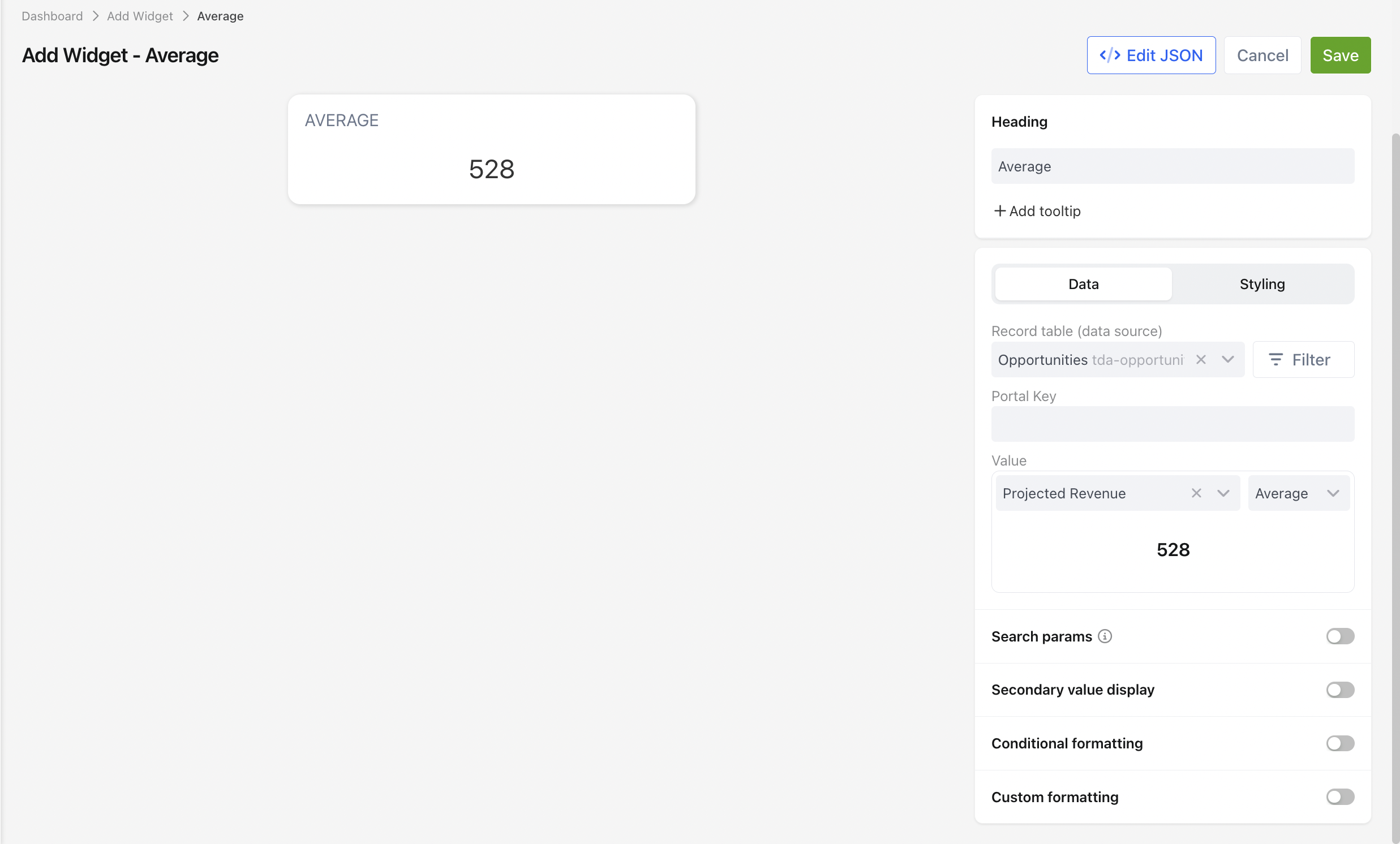

Configure the Average Widget

When configuring an Average widget from the UI, you can specify the following settings.

Options	Details
`type`	The type, always `average`.
`title`	The title of the widget to show.
`filter`	A Clevero filter array. Use this to filter results from both `primaryFilter` and `secondaryFilter`.
`field`	The internal ID of the field on this record to perform the average calculation over.
`prefix`	Text to display before the number.
`suffix`	Text to display after the number.
`decimal`	Whether or not to use decimal places. If `false` or not set, the value will be rounded to the nearest integer.
`decimalPlaces`	The minimum and maximum number of decimal places to show.
`numberFormat`	It formats the output number to have commas. By default, it is en-US, but you can also have values like en-AU, de-DE, en-IN, etc.
`primaryFilter`	A Clevero filter array. Use this to filter results for primary values of the widget.
`secondaryFilter`	A Clevero filter array. Use this to filter results for secondary values of the widget.
`defaultStyle`	`icon`: The font awesome icon to use. `color`: The colour to render the icon. `textColor`: The colour to render the count number. If omitted, the count is black. `labelColor`: The colour to render the label. If omitted, the count is black. `labelSize`: The font size to render the label. `labelWeight`: The font-weight to render the label. `labelOrientation`: The orientation of the label associated with the element. Such as `top`, `bottom`, `left`, and `right`. `labelAlign`: The alignment of the label relative to the element. Such as `top`, `bottom`, `left`, `right`, and `center`.
`secondaryValueDisplay`	The primary and secondary values or calculations are based on these values.

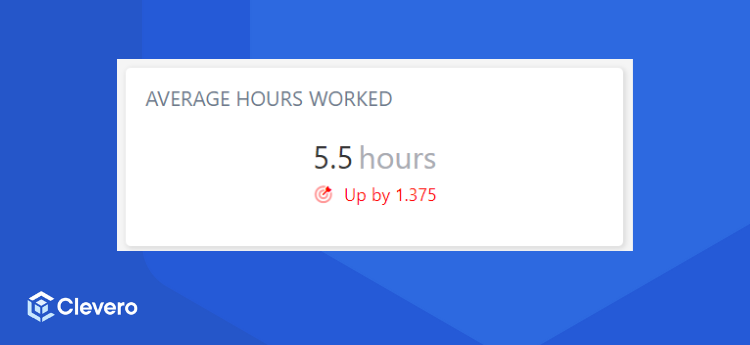

JSON Example

The following JSON produces the same configuration shown in the UI.

{
    "widgets": [
        {
            "type": "average",
            "title": "Average hours worked",
            "config": {
                "field": "duration",
                "decimal": true,
                "decimalPlaces": {
                    "min": 0,
                    "max": 2
                },
                "prefix": "",
                "suffix": "hours",
                "numberFormat": "default",
                "primaryFilter": [
                    {
                        "subject": "date",
                        "requestType": "i",
                        "type": "date",
                        "operator": "on_or_after",
                        "value": {
                            "relative": true,
                            "type": "minus_years",
                            "value": 1
                        }
                    }
                ],
                "secondaryFilter": [
                    {
                        "subject": "date",
                        "requestType": "i",
                        "type": "date",
                        "operator": "within",
                        "value": {
                            "from": {
                                "relative": true,
                                "type": "minus_years",
                                "value": 2
                            },
                            "to": {
                                "relative": true,
                                "type": "minus_years",
                                "value": 1
                            }
                        }
                    }
                ],
                "secondaryValueDisplay": "function({primaryValue, secondaryValue}){const number = (primaryValue- secondaryValue); return {value: `Up by ${number}`, color: 'red', icon: 'fa-duotone fa-bullseye-arrow'}}"
            }
        }
    ]
}
