Field Group

1. Overview

The field group tile type is dedicated to establishing a structured "column" layout for fields. It helps define Headers' content, content within a Form-Data tile, and Related Entry tiles.

📘
Note:
Field group are placed inside form-data.

2. Object Properties

The table provides a summary of the object properties associated with the field group tile type, including their types, mandatory or optional status, and descriptions.

Property	Type	Requirement	Description
`type`	`string`	Mandatory	Always set to `field-group`.
`columns`	`number`	Optional	The number of columns to display. If not set, it defaults to a value of 2 columns.
`minColumnWidth`	`number`	Optional	Specifies the minimum column width in pixels before the reduction of columns. By default, the minimum is set to `180` pixels. This functionality empowers adaptive control over the column count based on varying screen sizes.
`content`	`array`	Mandatory	An array of child elements to displayed inside of this field group.

3. Sample Configuration

3.1. Simple with Two-Column

This example shows how a field group functions with minimal setup. Despite the basic setup, the column count might decrease to one due to the available screen space.

{
 "type": "field-group",
 "content": [
    { "type": "field", "label": "Field A" },
    { "type": "field", "label": "Field B" },
    { "type": "field", "label": "Field C" },
    { "type": "field", "label": "Field D" }
 ]
}

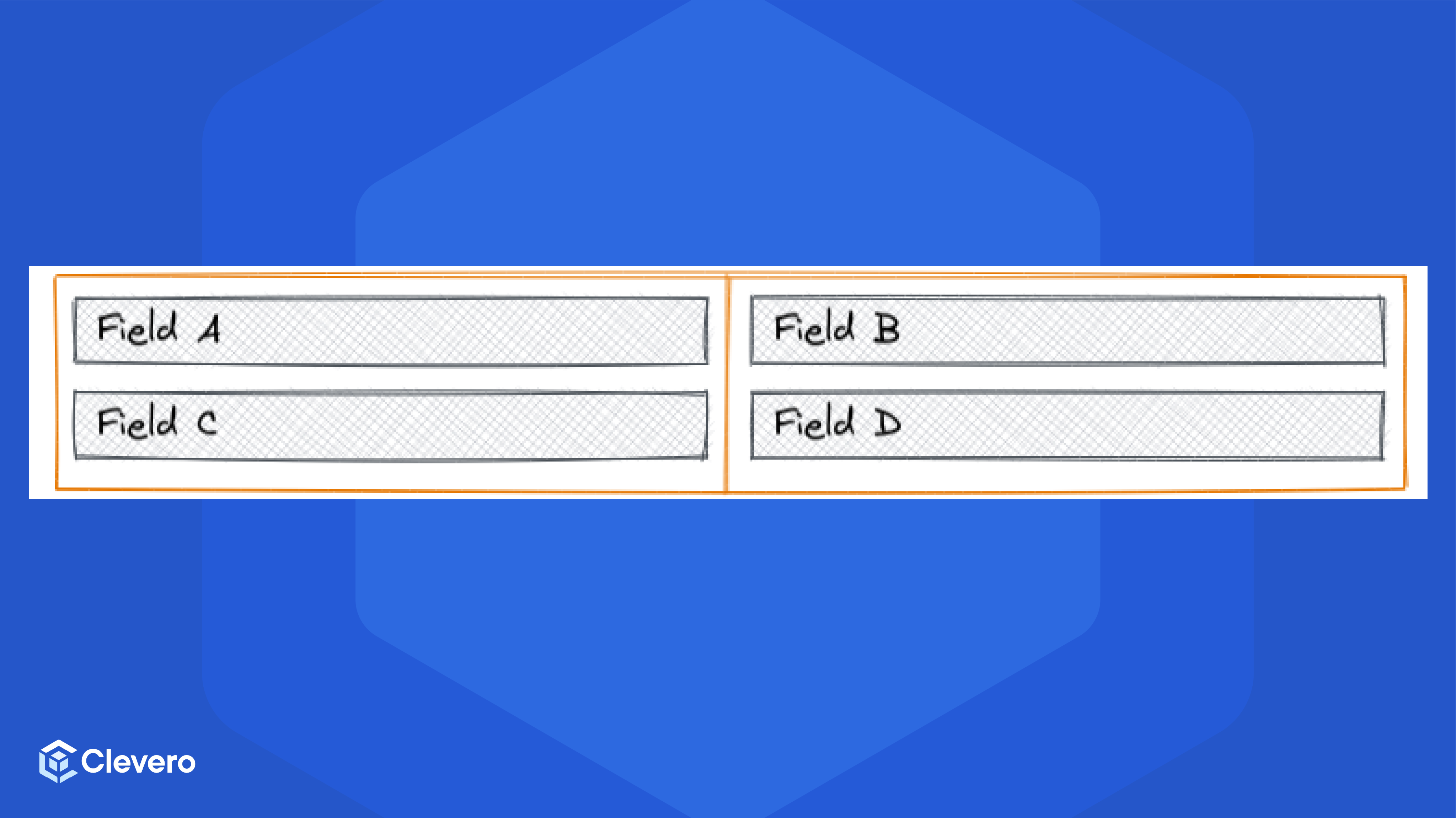

The field group displays two columns and two rows in the minimal configuration as demonstrated in the image below:

3.2. Three Columns with Minimum Column Width

This example shows the field group configured to a layout comprising three distinct columns with a minimum width.

{
 "type": "field-group",
 "columns": 3,
 "minColumnWidth": 200,
 "content": [
    { "type": "field", "label": "Field A" },
    { "type": "field", "label": "Field B" },
    { "type": "field", "label": "Field C" },
    { "type": "field", "label": "Field D" },
    { "type": "field", "label": "Field E" }
 ]
}

The field group exhibits three columns with minimum column width configuration as demonstrated in the image below:

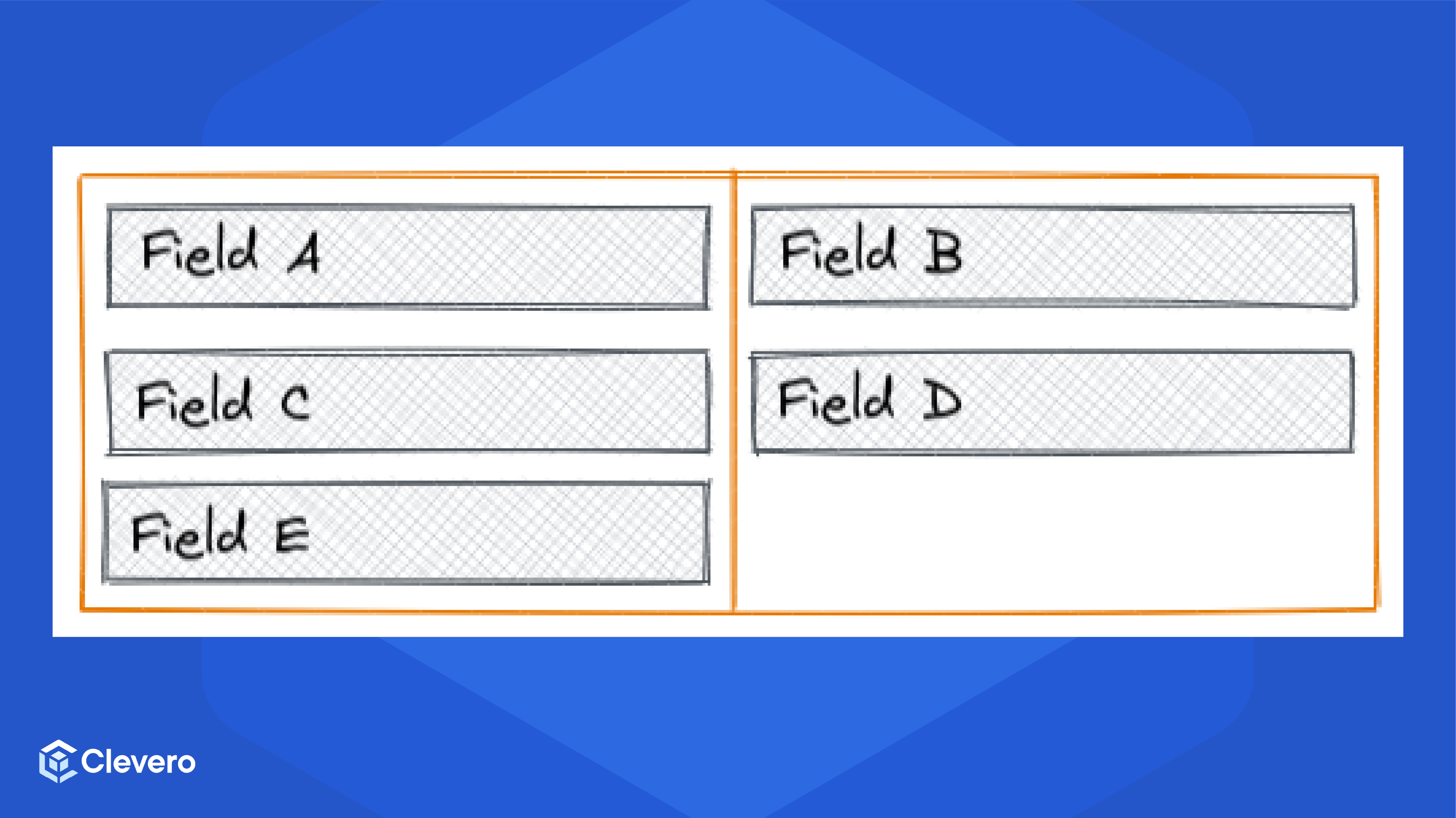

Demonstration on a compact screen with the `field group's` width falling within the range of equal to or above 200 _ 2 = 400px, and below 200 _ 3 = 600px — Demonstration on a compact screen with the `field group's` width falling within the range of equal to or above 200 *2 = 400px, and below 200* 3 = 600px

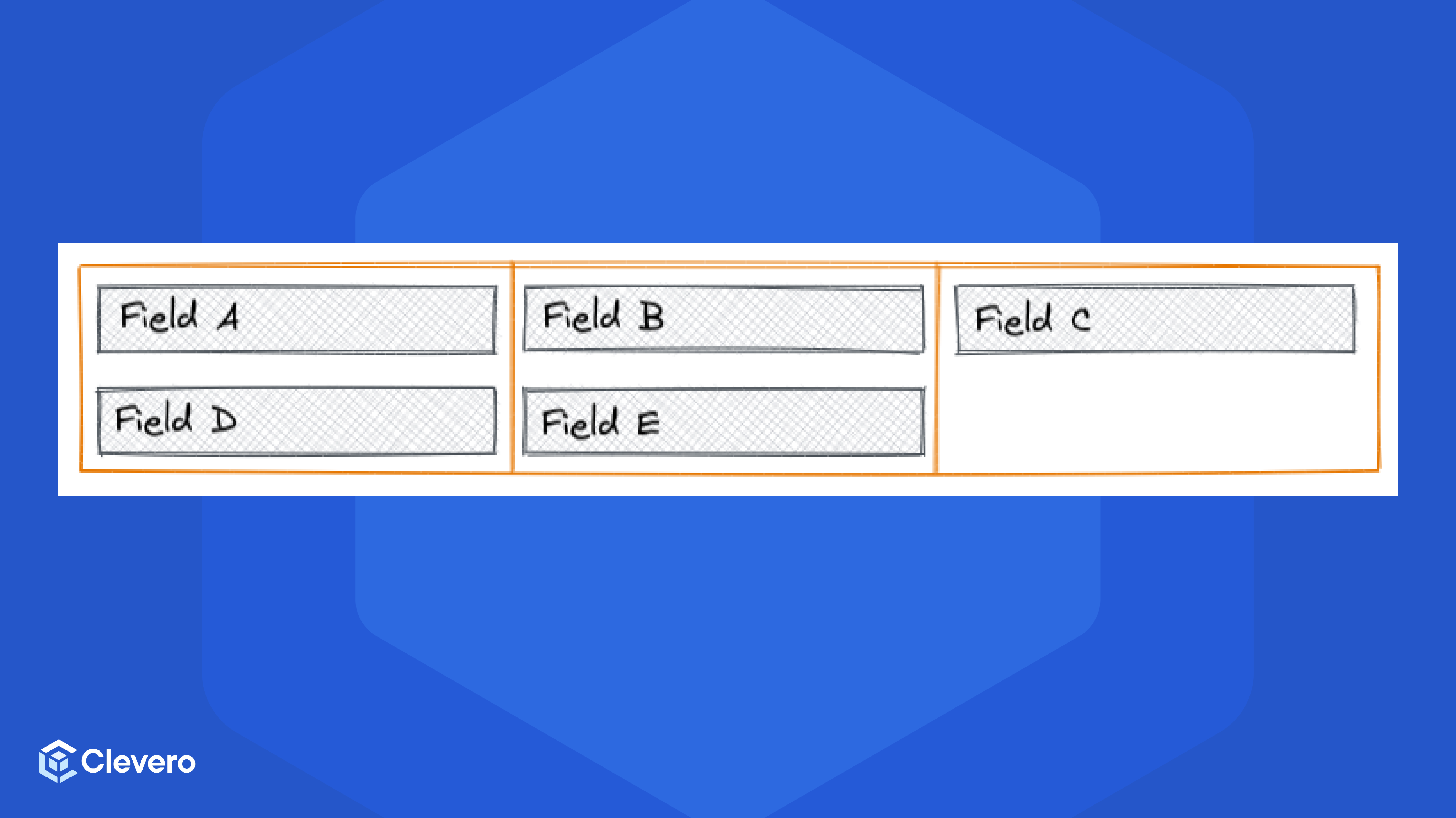

Demonstration on a wide screen with a `field group` width of 200 \* 3 = 600px or greater — Demonstration on a wide screen with a `field group` width of 200 * 3 = 600px or greater
